Selected Work

Drawings, models & visualizations.

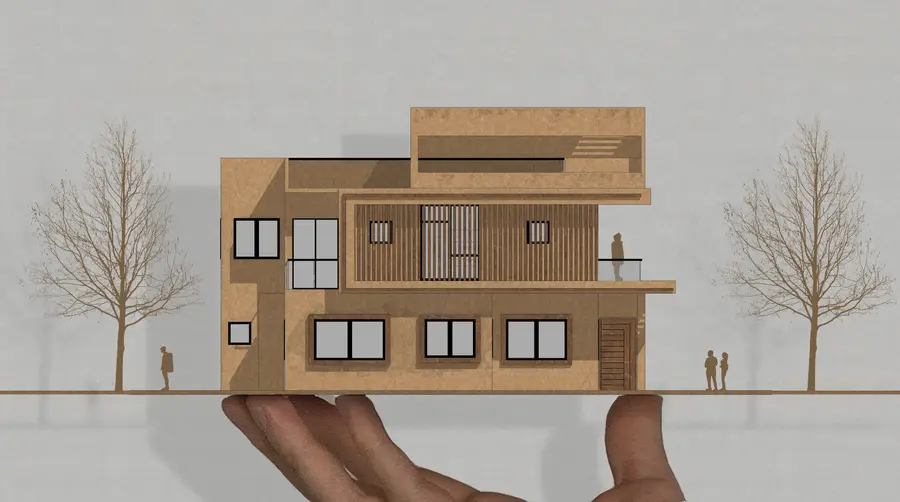

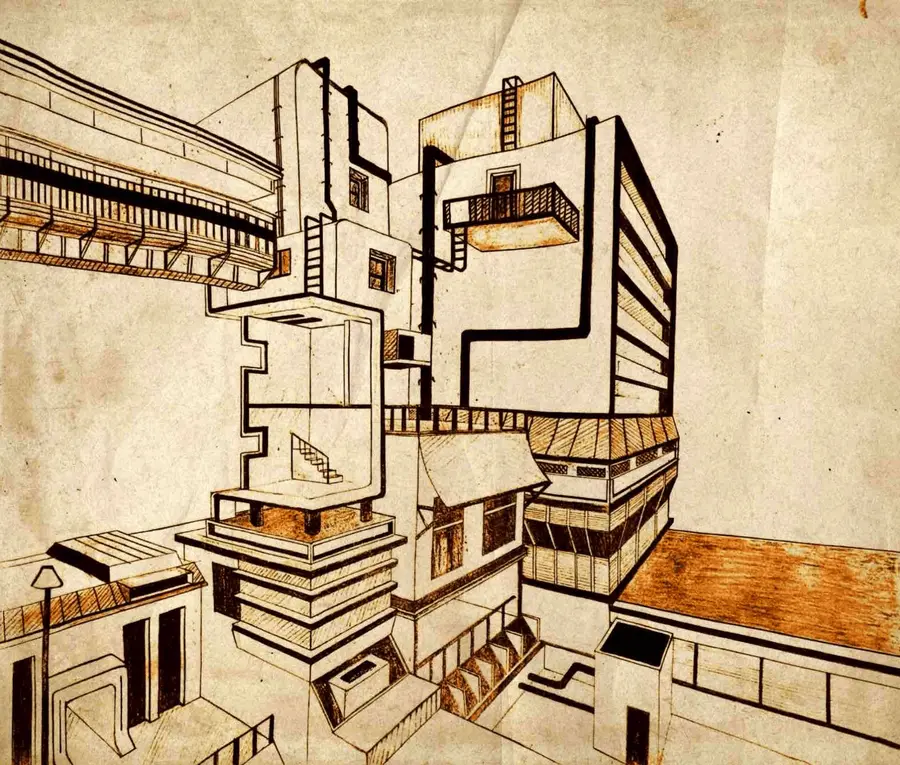

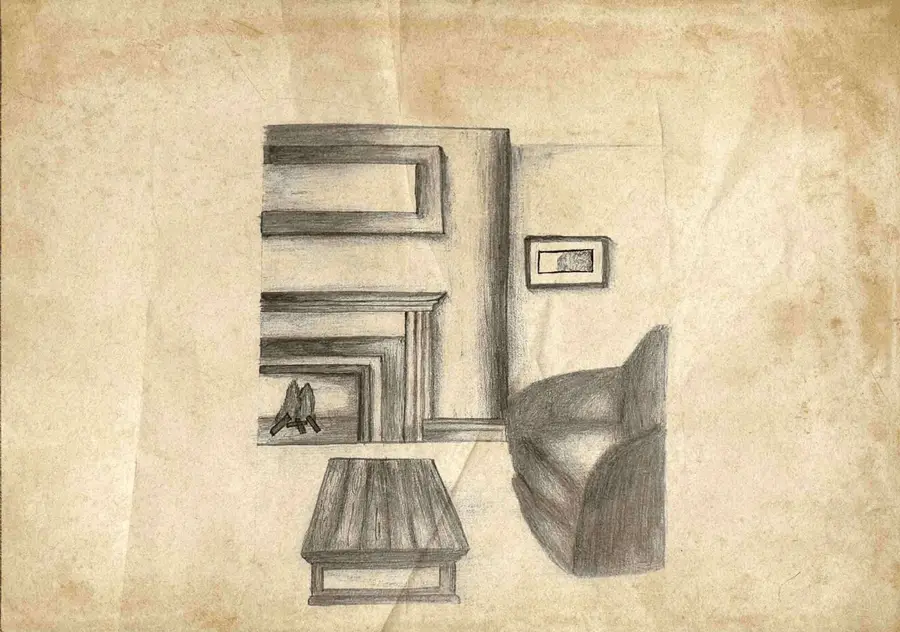

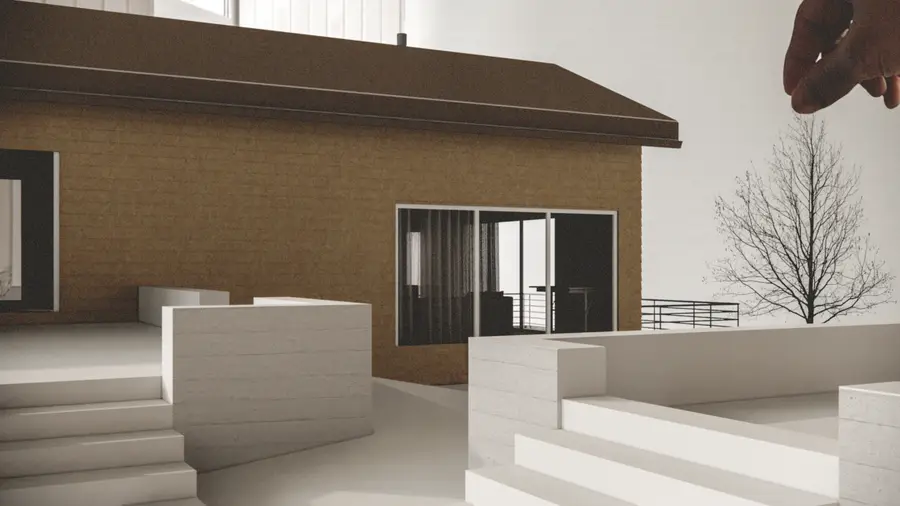

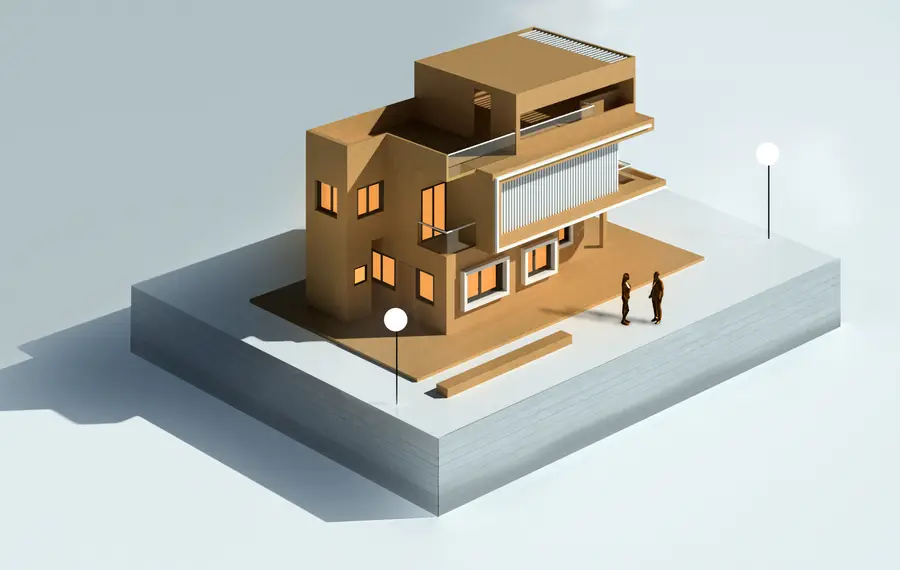

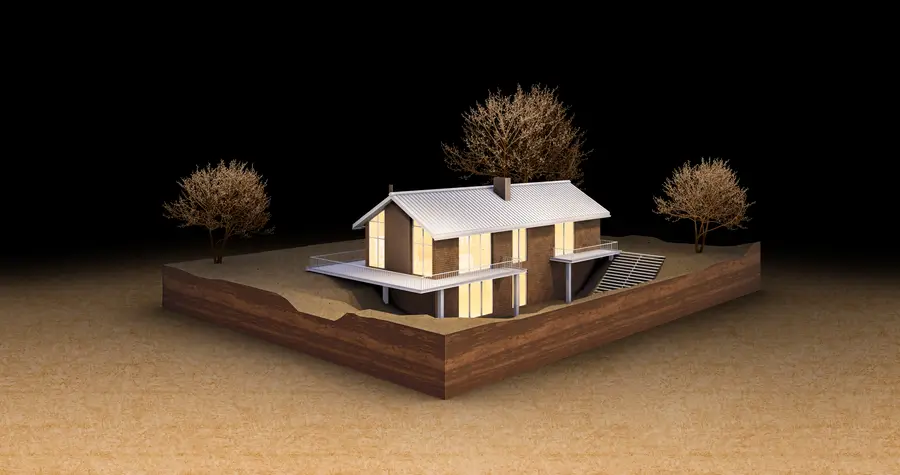

A curated archive of architectural technology work - coordinated working drawings, rendered visualizations, study models, diagrams, hand sketches, and code-compliant documentation produced with Revit and AutoCAD. Each set translates design intent into precise, build-ready detail.

Scroll to explore

Working Drawings

BIM-based construction documentation sets for coordinated project delivery.

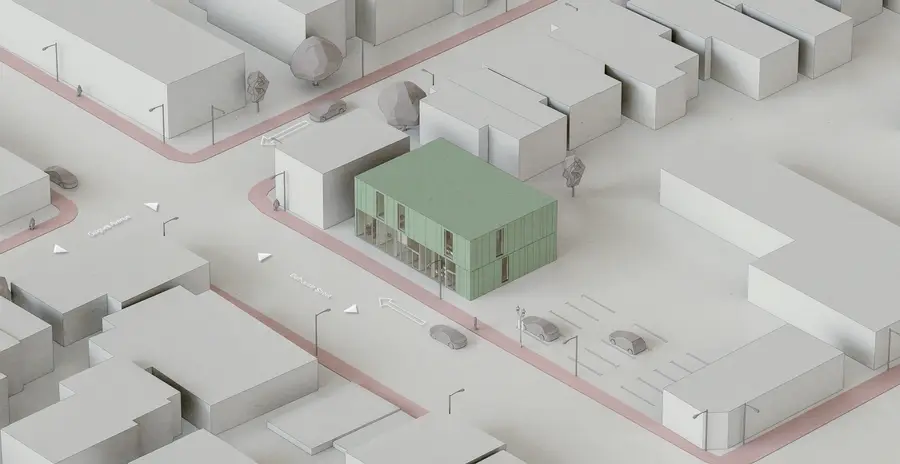

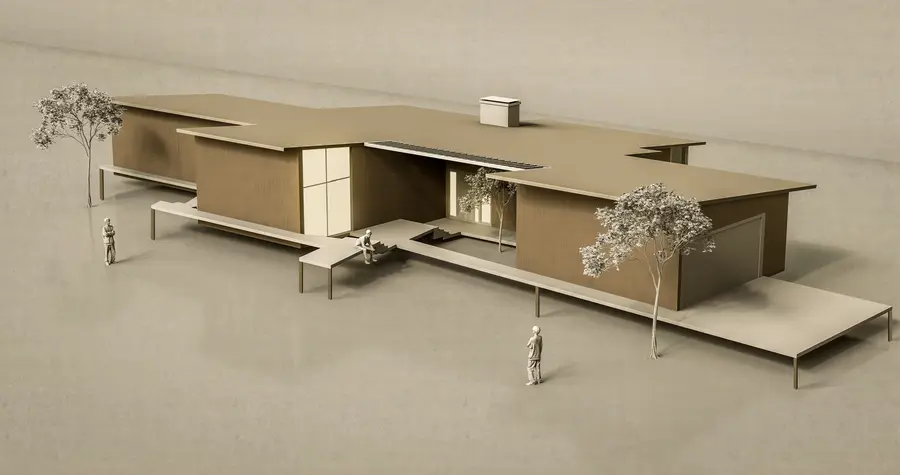

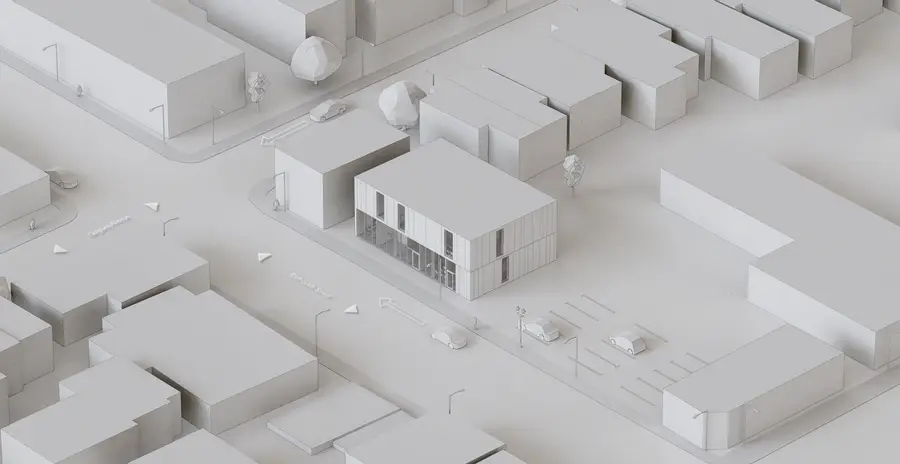

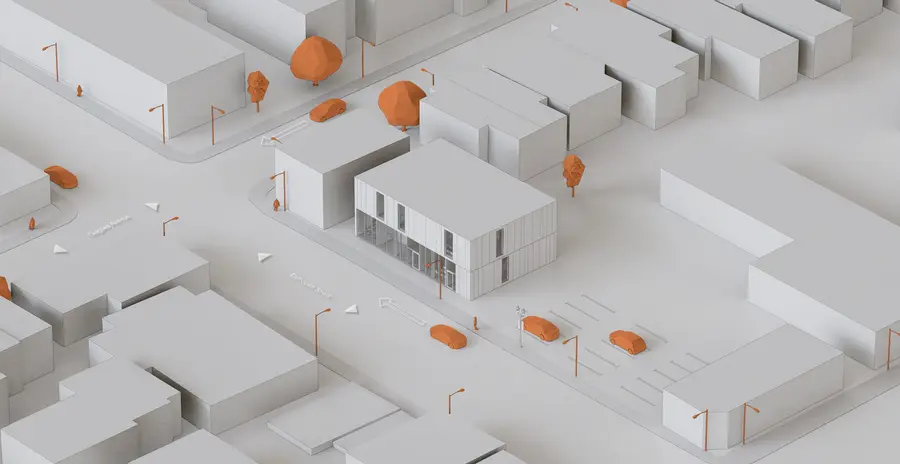

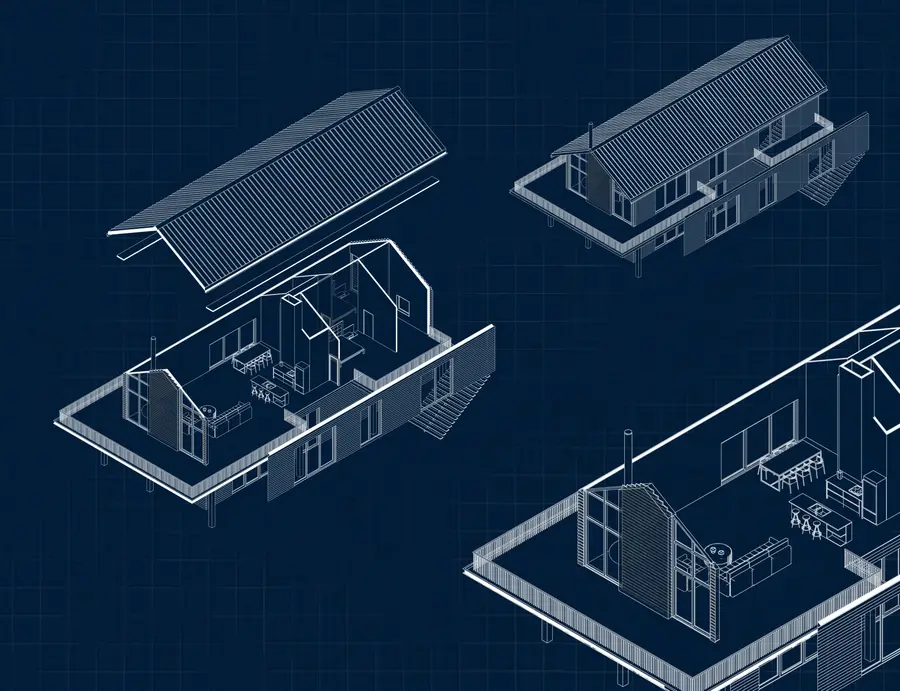

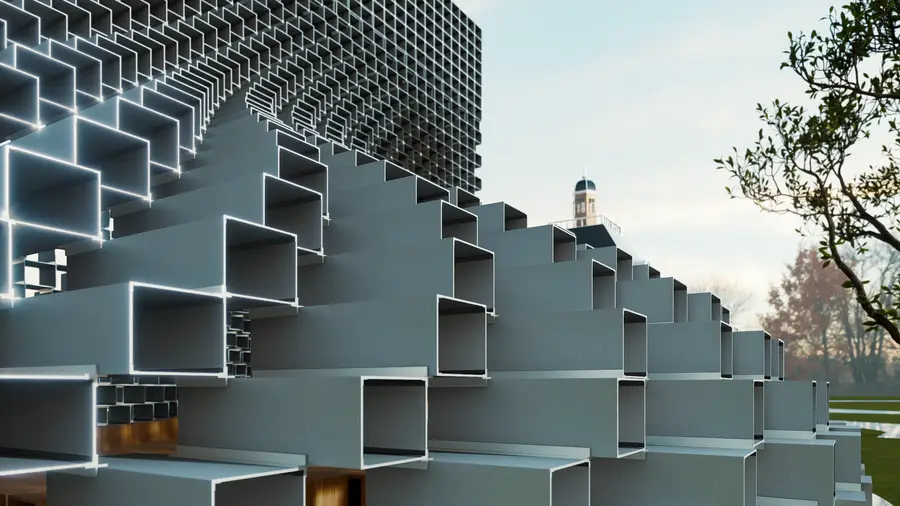

Architectural Visualization

Rendered studies expressing material, atmosphere, and spatial intent.

Architectural Portfolio

Selected academic and professional work across design, BIM, and visualization.

View Portfolio (PDF)

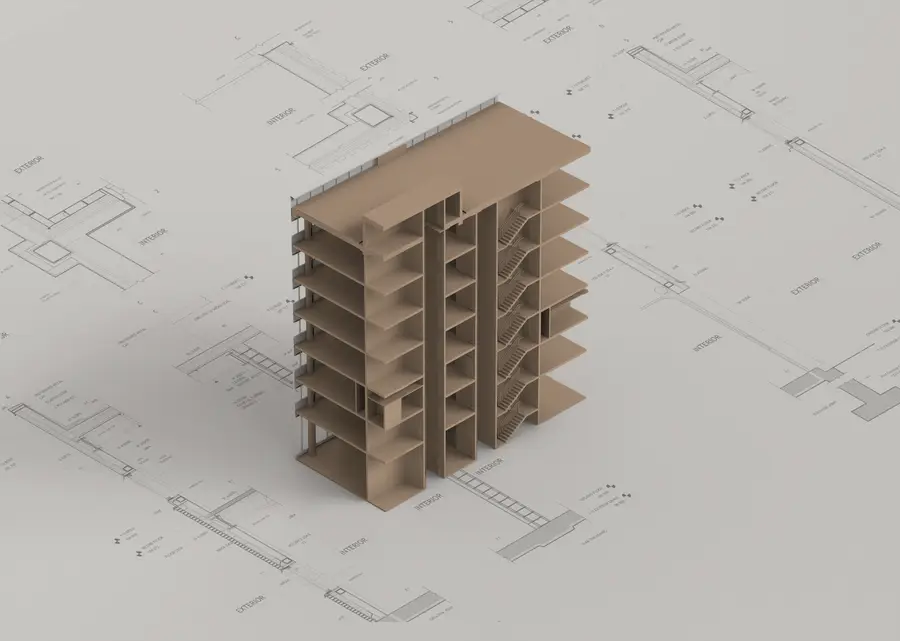

BIM Workflow

Revit-based modeling and coordination processes for design development and documentation.

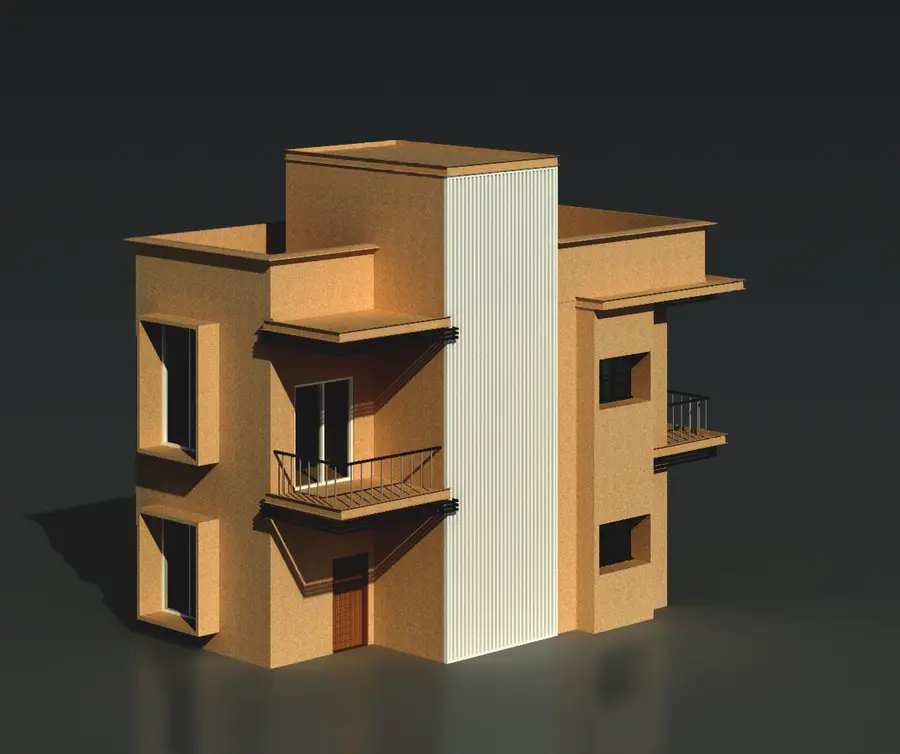

Malbar Heights

Download PDF6 images

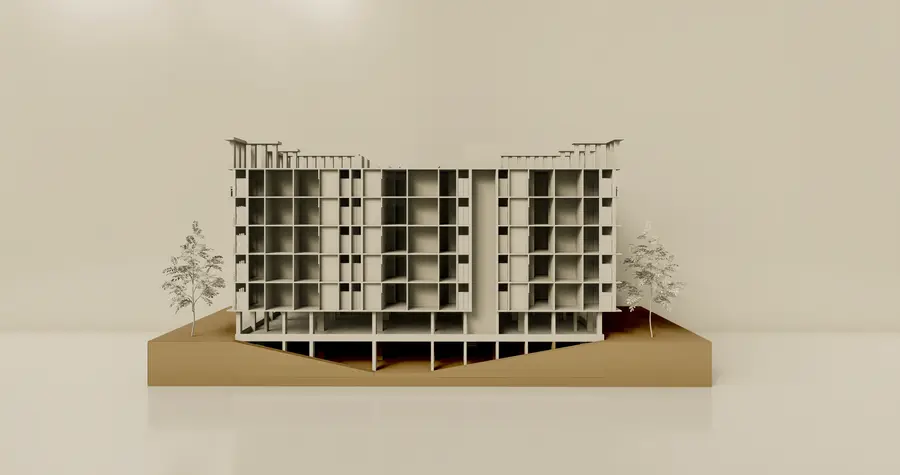

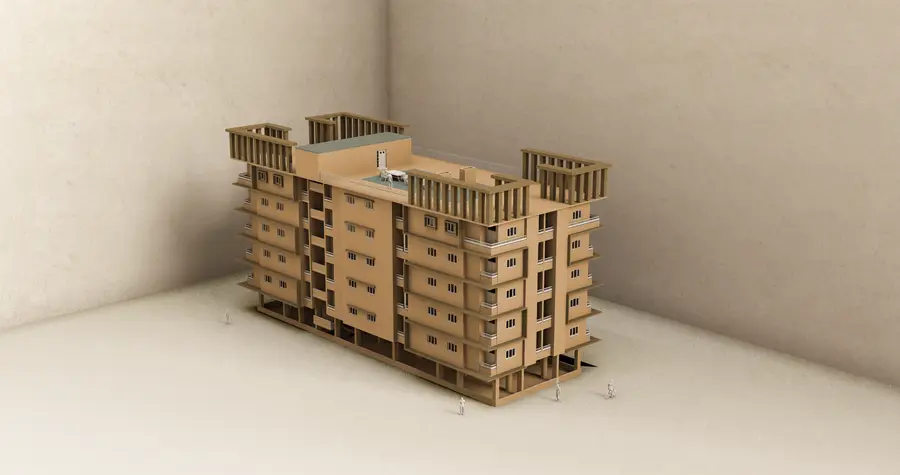

Malbar Heights is a multi-level reinforced concrete residential development featuring a subterranean parking garage, a ground-floor parking, deck, and upper floor framing. Engineered for the tropical, non-freezing climate of Vallabh Vidyanagar (Gujarat, India), the project strictly adheres to IS 456:2000 structural criteria.

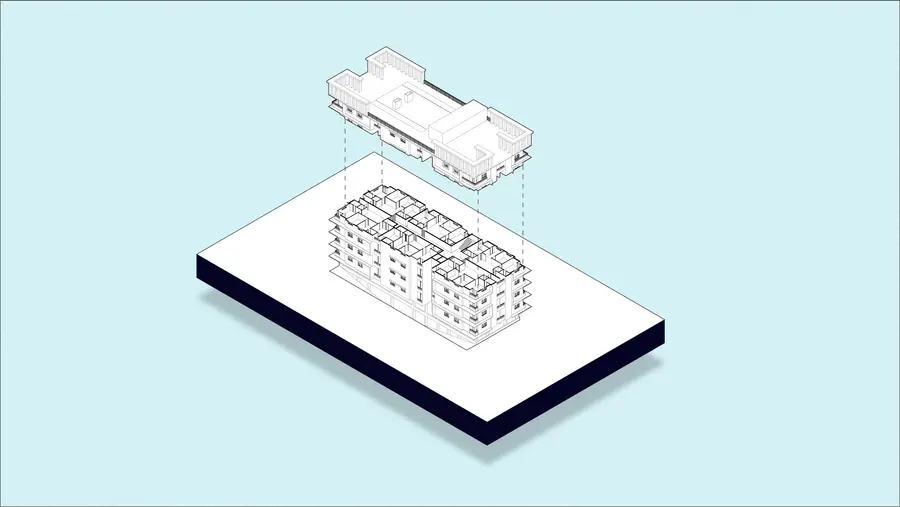

The project was executed using advanced Building Information Modeling (BIM) workflows split into two federated files to optimize data management. The Architectural Model (LOD 300) establishes spatial layouts and hosts accurate material parameters used to extract precise brickwork unit counts.

The Structural Model (LOD 400) contains a fabrication-ready, cast-in-place framework embedded with complex 3D rebar connection cages and a synchronized structural analytical wireframe. This digital data pipeline bridges structural detailing with automated material estimation.
